CCD Vision Fabric Laser Cutting Machine for Printed Textiles and Garment Contour Cutting DF Series

Home » Products » Laser Cutting Machines » CCD Vision Fabric Laser Cutting Machine for Printed Textiles and Garment Contour Cutting DF Series

DF series

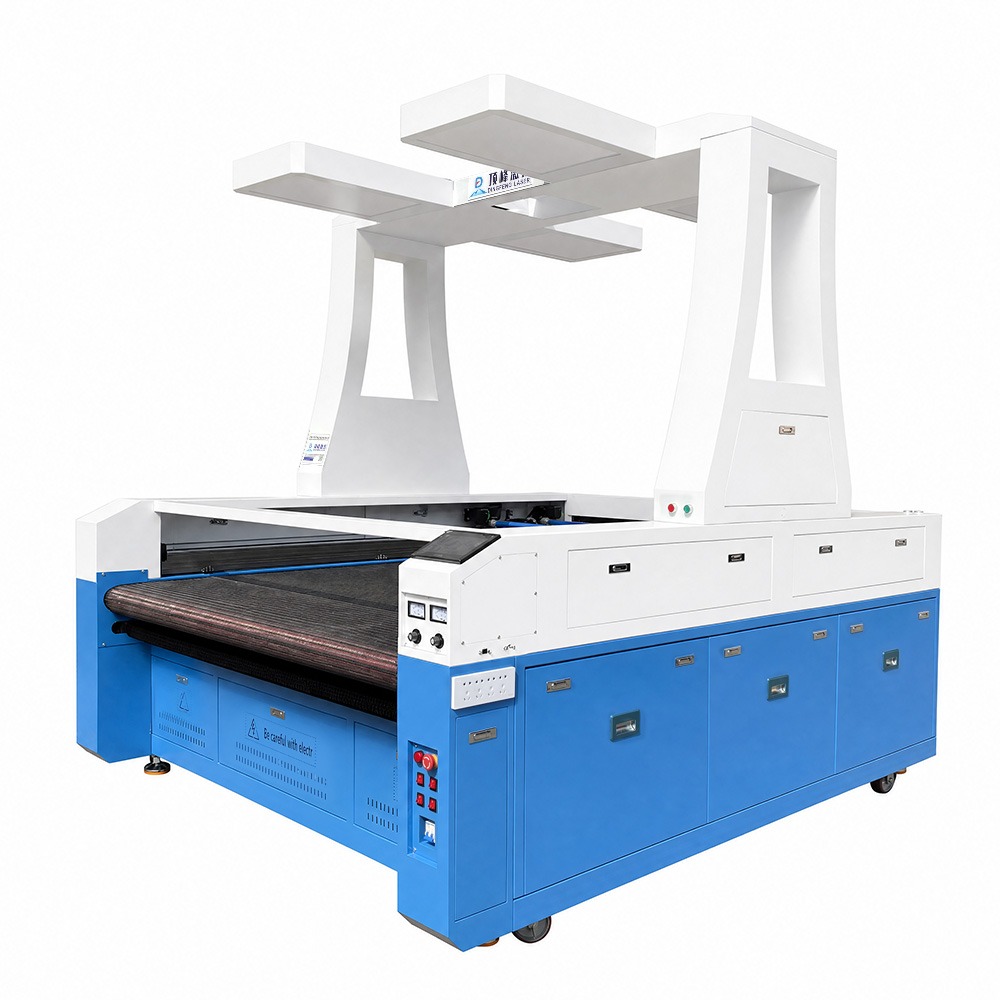

CCD Vision Fabric Laser Cutting Machine for Printed Textiles and Garment Contour Cutting DF Series

A panoramic fabric laser cutting machine with industrial camera vision and a CO2 laser system. It is designed for cutting and engraving apparel, swimwear, printed textiles, home textiles, footwear, bags, and plush products.

Working area: 1600 × 1000 to 2000 × 3000 mm
Laser power: 80–300 W
Repeat accuracy: ±0.05 mm
CO2 laser with water cooling

Request a quote

Sales hotline+86 137 1313 7075

Model configurations

Model	Working area (mm)	Laser power	Total power	Cutting/engraving speed
DF-1610	1600 × 1000	80–150 W	≤3000 W	0–1000 / 0–1500
DF-1814	1800 × 1400	80–150 W	≤3000 W	0–1000 / 0–1500
DF-1816	1800 × 1600	80–150 W	≤3000 W	0–1000 / 0–1500
DF-1820	1800 × 2000	130–300 W	≤5000 W	0–1000 / 0–1500
DF-1825	1800 × 2500	150–300 W	≤5000 W	0–1000 / 0–1500
DF-1830	1800 × 3000	150–300 W	≤5000 W	0–1000 / 0–1500
DF-1916	1900 × 1600	150–300 W	≤5000 W	0–1000 / 0–1500
DF-1922	1900 × 2200	150–300 W	≤5000 W	0–1000 / 0–1500
DF-1927	1900 × 2700	150–300 W	≤5000 W	0–1000 / 0–1500
DF-2022	2000 × 2200	150–300 W	≤5000 W	0–1000 / 0–1500
DF-2025	2000 × 2500	150–300 W	≤5000 W	0–1000 / 0–1500
DF-2030	2000 × 3000	150–300 W	≤5000 W	0–1000 / 0–1500

Customization: Standard configurations are shown above. Working area, laser power, and automation options can be customized.

Technical specifications

Camera	Industrial camera
Cooling	Water cooling
Laser type	CO2
Operating temperature	0–45 °C
Operating humidity	5%-95%
Repeat positioning accuracy	±0.05 mm
Transmission	Stepper / servo motor
Voltage	220 V / 110 V, 50/60 Hz
Supported formats	DWD, DXF, JPG, AI, TIFF, PLT, CDR, BMP, GIF
File transfer	USB cable, USB drive, network

Key functions

Intelligent visionThe industrial camera vision system identifies fabric contours and pattern positions.

Automatic recognitionThe system recognizes cutting patterns automatically and reduces manual positioning time.

Ultra-high precisionRepeat positioning accuracy of ±0.05 mm supports fine patterns and contour cutting.

High-speed cuttingHigh-speed cutting and engraving are suitable for batch textile production.

Contour cuttingSupports shaped patterns and contour cutting for customized production.

Applications

Suitable for sportswear, swimwear, printed apparel, home textiles, footwear, lace, handbags, gloves, luggage, car cushions, leather goods, plush toys, and paper products.
