High-Precision Zipper Heat Transfer Printing Machine for Nylon, Metal and Resin Zippers ZS-AD
Home » Products » Ribbon Printing Machines » High-Precision Zipper Heat Transfer Printing Machine for Nylon, Metal and Resin Zippers ZS-AD
ZS-AD

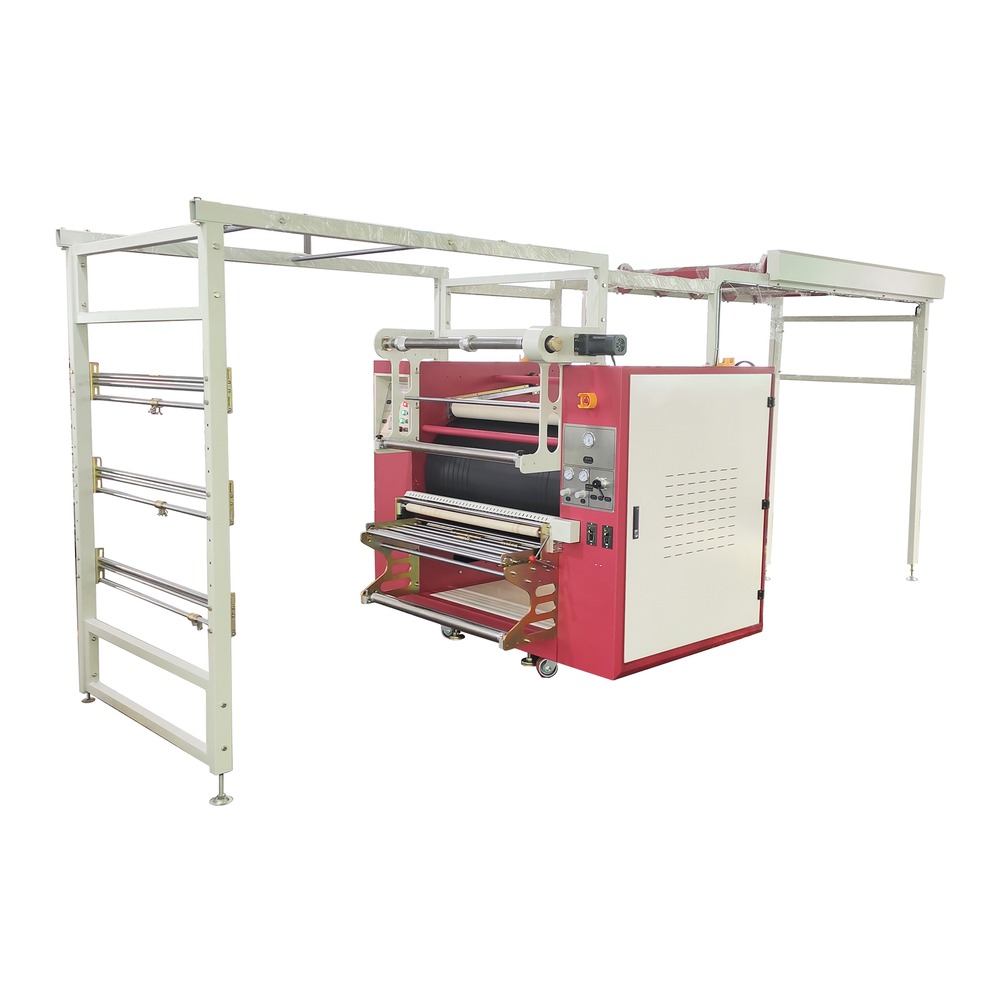

High-Precision Zipper Heat Transfer Printing Machine for Nylon, Metal and Resin Zippers ZS-AD
A high-precision zipper printing machine for nylon, resin, and metal zippers. Its automatic laser alignment system supports accurate front-and-back registration with errors controlled within 1 mm.
- Drum diameter: 610 mm
- Effective width: 600 mm
- Registration accuracy: ±1 mm
- Power: 36 kW
Request a quote
Sales hotline+86 137 1313 7075
Product parameters
| Drum diameter | 610 mm |
|---|---|
| Effective transfer width | 600 mm |
| Actual drum width | 760 mm |
| Machine current | 50 A |
| Machine power | 36 kW |
| Winding method | 3 unwind / 2 wind |
| Footprint | 3400 × 1760 × 1830 mm |
| Weight | 1600 kg |
Customization: Standard specifications are shown above. Configurations can be customized for different zipper types.
Key advantages
Automatic laser alignmentThe laser alignment system controls registration error within 1 mm.
U-shaped frame designThe U-shaped frame supports accurate positioning at the material inlet.
Dupont blanket materialA US Dupont blanket withstands temperatures up to 350 °C and allows the machine to stop without separating the blanket.
Zipper tension positioning rackHolds the zipper tape during transfer and helps prevent lateral deviation.
Magnetic powder tension systemProvides stable paper feeding and winding with easy tension adjustment.
Applications
Suitable for nylon zippers, resin zippers, metal zippers, zipper tapes, and tooth-surface printing.

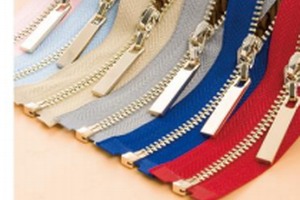

Nylon zippersFront-and-back zipper printing

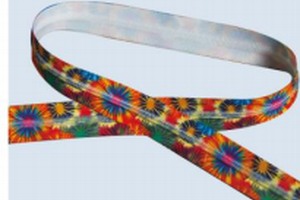

Color zipper tapesPrinted zipper tapes and decorative zippers

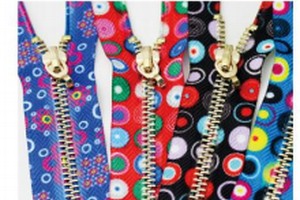

Resin zippersTooth-surface and tape printing

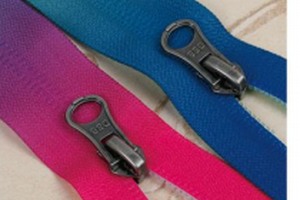

Metal zippersAccurate registration for metal zippersOperating components
Positioning rackControl panelBrand motorMagnetic powder windingStrap winding device
Ordering and support
1-year warrantyFull machine warranty with lifetime maintenance support
7–15 day lead timeStandard configurations scheduled by order
CustomizationWorking width, voltage, and configuration can be customized
Custom lead timeApproximately 20 days; confirmed with our engineers
